FCC Level 2 Single Phase EV Charger Wallbox 12kW Wall Mounted EV Charging Station

Product Categories
Sichuan Hongshunjin Trading Co., Ltd.
Contact Now

FCC Level 2 Single Phase EV Charger Wallbox 12kW Wall Mounted EV Charging Station

Brand Name : Hongshunjin

Model Number : GS-AC48-B01

Certification : CE,ROHS,FCC

Place of Origin : Sichuan, China

MOQ : 1

Price : USB 359-399 Pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 pieces Per week

Delivery Time : 3-30 days

Charging Standards : type 1sae j1772

max Output Power : 12kW

Rated Current : 40A8

Rated Voltage : 240v

Key Words : 10kw ev Charging station

Application : Commercial and home use

Warranty : 1 Years

Cable length : 3.5m or customization

Contact Now

FCC Level 2 Single Phase EV Charger Wallbox 12kW Wall Mounted EV Charging Station
Home charger is the single phase 7kW AC charger with maximum 32A output current, specially designed for private use. With half size of A4 paper .It saves space and is easy to operate, which is an ideal solution for your home or company. The charger is equipped with RFID card function for ID authentication to prevent theft of electricity. Only the user with RFID card has access to the charging.
Benefit
Data
Model
GS7-AC-BO1
GS11-AC-BO1
GS22-AC-BO1
Input
Power Supply
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage
230V AC
400V AC
400V AC
Rated Current
32A
16A
32A
Output
Output Voltage
230V AC
400V AC
400V AC
Output Current
32A
16A
32A
Rated Power
7KW
11KW
22KW
User Interface
Charging Port
Type 2
Cable Length
3.5M or customization length
LED Indicator
Yellow/Green/Red
Start Mode
Plug&Play / RFID Card / APP
Emergency Stop
YES
Communication
WIFI
Optional
3G/4G/5G
Optional
OCPP
OCPP 1.6 Json (OCPP 2.0 Optional)
Package

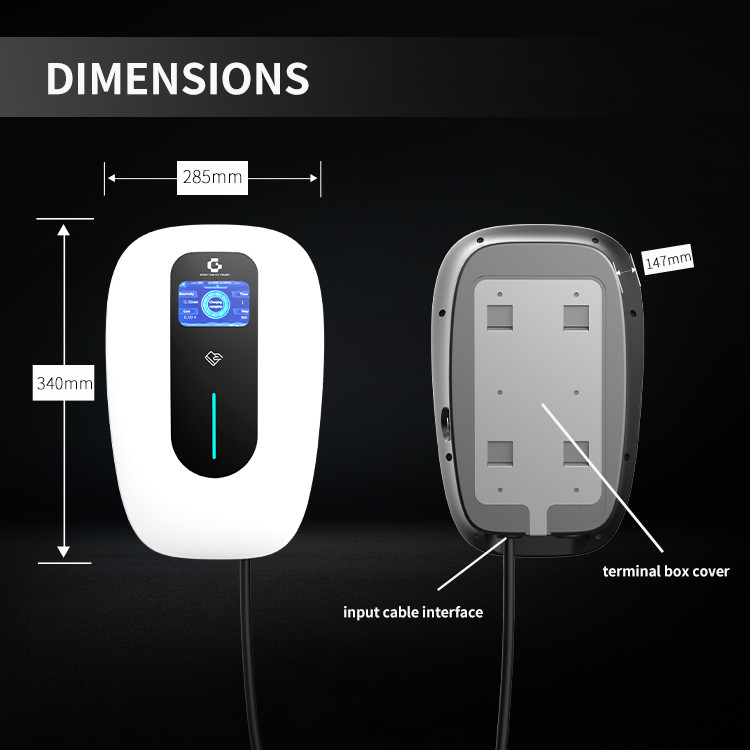

Unit Size
340*285*147mm
Package Size
480*350*210mm
480*350*210mm
480*350*210mm
Net Weight
3.8KGS
4.5KGS
4.5KGS
Gross Weight
4KGS
5KGS
5KGS

FCC Level 2 Single Phase EV Charger Wallbox 12kW Wall Mounted EV Charging Station

FCC Level 2 Single Phase EV Charger Wallbox 12kW Wall Mounted EV Charging StationFCC Level 2 Single Phase EV Charger Wallbox 12kW Wall Mounted EV Charging StationFCC Level 2 Single Phase EV Charger Wallbox 12kW Wall Mounted EV Charging StationFCC Level 2 Single Phase EV Charger Wallbox 12kW Wall Mounted EV Charging StationFCC Level 2 Single Phase EV Charger Wallbox 12kW Wall Mounted EV Charging Station
FAQ

1. who are we?
We are based in Sichuan, China, start from 2022,sell to North America(30.00%),Western Europe(20.00%),Northern Europe(15.00%),South America(10.00%),Oceania(10.00%),Southeast Asia(5.00%),Mid East(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. why should you buy from us not from other suppliers?
We have more than ten years of OEM supporting experience in automotive OEMs, strictly abide by the R&D, manufacturing and quality management standards of automotive electronics, and provide customers with excellent products and services.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow
